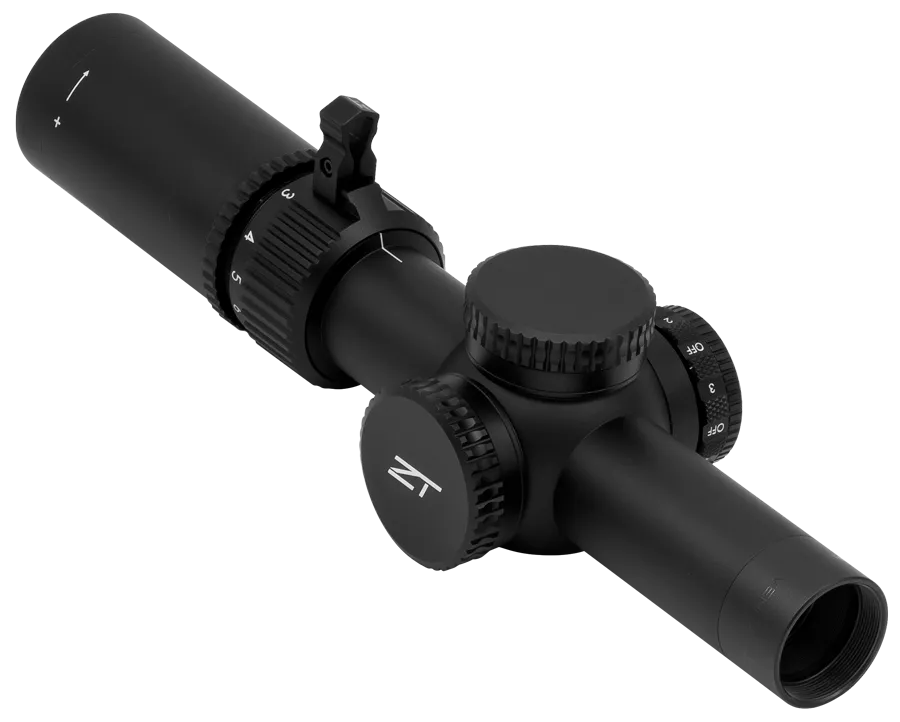

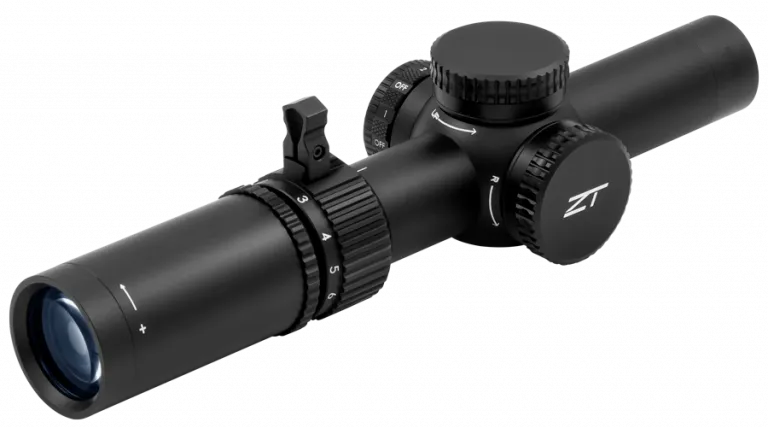

Our locking diopter system allows you to secure your diopter setting with a lock ring and achieve a perfect 1 X image every time. The removable magnification throw lever makes power changes a breeze, coupled with our RAR illuminated reticle makes for the ultimate speed shooting combination. Low profile, large diameter capped turrets provide precise and audible indexing and are guaranteed to return to zero every time. A 30mm main tube will ensure excellent mounting versatility and high strength.
Focal Plane |
Second (SFP) |
Reticle calibrated magnification power (SFP only) |
6x |
Magnification Range |
1-6x |
Objective Lens Diameter |
24mm |
Maintube Diameter |
30mm |
Dioptre Adjustment |
-2/ +2 (locking) |
Zero Stop |
No |
Turret Index Value |
0.5MOA |
Internal Elevation Adjustment |
80MOA |
Internal Windage Adjustment |
80MOA |
Exit Pupil Diameter |
Low: 10.6mm; High: 4.0mm |
Eye Relief |
100mm |
Field Of View @100 Meters |
Low: 30.77m; High: 5.23m |
Objective Outer Diameter |
30mm |
Ocular Outer Diameter |
40mm |
Weight |
588g |
Available Reticles |
RAR (MOA) |
Illumination |
Yes – 6 Brightness settings |
Product Resources |
Visit the Zerotech Resources Website
|

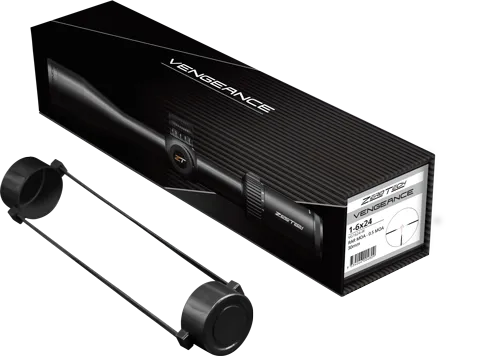

IN THE BOX
- Removable Magnification Throw Lever
- Stretch Fit Scope Cover
- Instruction Manual
- Reticle Range Chart
- High Quality Microfiber Cloth

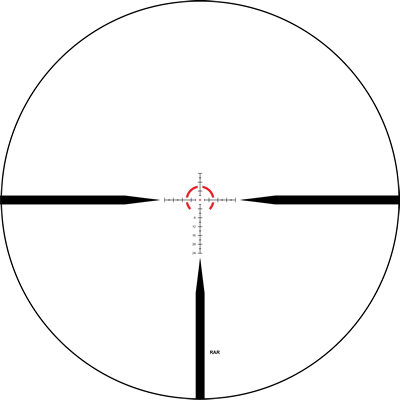

RAR MOA RETICLE
RAR Illuminated reticle allows for rapid target acquisition and speed shooting, yet enables precision shots when required. The heavy outer bars taper to sharp and precise points, leading the shooters eye naturally to the centre of the reticle. Incorporation of a segmented ¾ illuminated circle and centre dot make speed shooting a breeze. Integrated 2 MOA hash marks and numbered 4 MOA elevation intervals give shooters the ability to account for wind and bullet drop.
